Top Type Van Refrigerator Unit Reefer Unit with Optional Electric Standby System

Model NO. : T-400

Sealing Technology : Patented O Sealing Technology

Design Base Environment : 45 Degree C

Durability Range : The Highest Level

Maintenance : Lower The Cost of Maintance

Transport Package : Carton Filled with Paper Honeycomb

Trademark : SNOWFALL

Origin : Guangzhou, China

HS Code : 8418692090

Supply Ability : 300 Sets Per Month

Service : OEM

Installation : Front, Roof, Under Mounting Type

Electric : Optional Electric Standby System

Colour : White

Fan Material : Aluminium Alloy

Condensor Design : Latest Exclusively for Refrigeration Unit

Customization : Available | Customized Request

Contact Now

Top Type Van Refrigerator Unit Reefer Unit with Optional Electric Standby System

Specifications
Introduce:
Suitable for light and medium truck trucks, driven by engine or driven by standby electric refrigeration system, and optional installation of standby electric refrigeration system DC220V/DC380V.

It is the first choice for transporting refrigerated frozen food, dairy products, vegetables, fruits, ice cream and fresh industrial electronic products. Its refrigeration performance is very stable and reliable. SNOWFALL recommends you choose between a classic engine drive unit and a brand new backup built-in unit. Covering all container volumes, one or more of this series will meet your needs.The SF-400, a transport refrigerating unit driven by the engine, is a reliable refrigerating unit for the refrigerating keeping fresh car with the size of 14~-18m of the heat preservation compartment, and also has the selection of bottom hanging condenser inside.

Features

Optional DC 12V or 24V for you to choose, and backup electric refrigeration system DC220V/DC380V optional installation.
The whole transport refrigerating unit is light and compact, the condenser is in front, and the evaporator can be installed as required.
This series of models fully covers the refrigerated capacity ranging from 14 m to 45 m and accurately matches its refrigerated volume from per square meter.
Each SNOWFALL will be featured with low cost, low maintenance, low noise, energy saving and environmental protection.

Model			SF-T400
Applicable Temperature (ºC)			+20~ -18
Cooling Capacity	Environmental Temperature		35°C
	0°C		3900
	-18°C		2300
Compressor	Model		QP16
	Displacement(cc/r)		163 cc
Condenser	Type		P.F.
	Fan Type		Axial fan
	Number of Fan		2 Fan x 1000m³/h
	Voltage		DC 12V/DC24V
Evaporator	Type		Inner screw tube and aluminium fin
	Fan Type		Axial fan
	Number of Fan		2Fans x 800m³/h
	Voltage		DC 12V/DC24V
Power Consumption			≤ 33A (DC12V) ≤ 16.5A (DC24V)
Refrigerant			R-134a/ R-404a
Defrost Type			Automatically hot air defrost
Structure			Split direct drive unit
Dimensions (mm) /Net weight(kg)		T400Evaporator	1270x580x170	31.63kg
		T 400Condenser	1280x640 x1200	31.91kg

Product Tags:

Top Type Van Refrigerator Unit

Top Type Van Reefer Unit

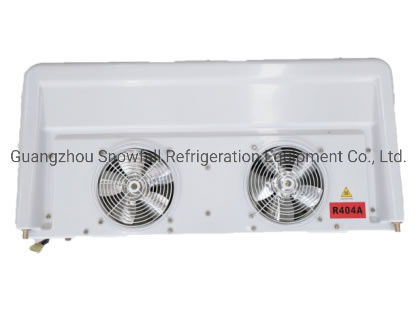

Top Type Van Refrigerator Unit Reefer Unit with Optional Electric Standby System Images
